Split Flange Code 61 (3000 psi)

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

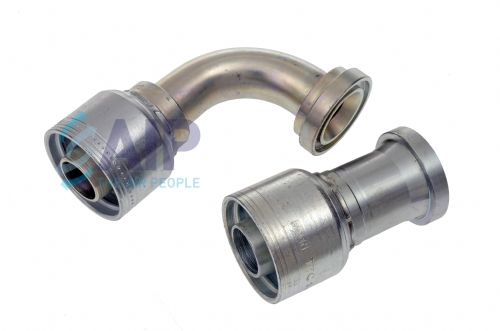

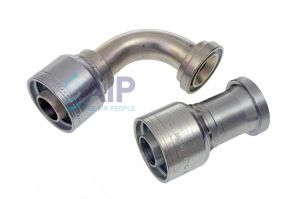

One piece, no skive, through the cover fitting for 1 & 2 wire hoses from Aeroquip. Available in straight, 45 & 90 degree.

Known as Code 61 or 3K flange suitable for 3K Split Flanges (please see in Related Products section).

This fitting is supplied without O Ring. For O Rings in NBR (standard mineral oil) or EPDM (phosphate ester based hydraulic fluid) please see related products section.

Other sizes available on request.

At AIP we specialise in hydraulic hose fittings. Whatever your requirements please do not hesitate to contact us - a member of our team will be happy to help.

Technical Details

Manufacturers Ref:
Straight:	FL
45 Degree:	FLA
90 Degree:	FLB

Datasheets

Split Flange Code 61 (3000 psi) datasheet

Click Here

Prices (Click quantity for more availability info)

	Aeroquip Ref	Flange Size	Hose Size (1/16”)	Order Code	Available	Each
Flange Straight (FL)
	1A8FL8	1/2"	-8	117338	0	£14.73
	1A12FL12	3/4"	-12	117340	8	£16.57
	1A16FL16	1"	-16	117343	7	£26.12
	1A20FL16	1 1/4"	-16	117344	2	£56.38
	1A20FL24	-	-24	117349	0	£73.13
	1A24FL24	1 1/2"	-24	117350	4	£52.58
	1A32FL24	2"	-24	117351	0	£145.93
	1A32FL32	-	-32	117352	1	£117.88
Flange 45 Degree (FLA)
	1A8FLA8	1/2"	-8	117353	0	£49.53
	1A12FLA12	3/4"	-12	117355	4	£23.50
	1A16FLA12	1"	-12	117356	0	£74.77
	1A16FLA16	1"	-16	117358	4	£37.67
	1A20FLA16	1 1/4"	-16	117359	0	£44.30
	1A24FLA24	1 1/2"	-24	117365	9	£51.12
	1A32FLA24	2"	-24	117366	0	£186.12
	1A32FLA32	2"	-32	117367	0	£170.88
Flange 90 Degree (FLB)
	1A8FLB8	1/2"	-8	117368	0	£49.32
	1A12FLB12	3/4"	-12	117369	5	£26.65
	1A12FLB16	-	-16	117371	0	£37.32
	1A16FLB16	1"	-16	117372	5	£35.52
	1A20FLB16	1 1/4"	-16	117373	0	£40.37
	1A20FLB20	-	-20	139387	1	£39.73
	1A20FLB24	-	-24	117380	0	£86.27
	1A24FLB24	1 1/2"	-24	117381	6	£69.90
	1A32FLB24	2"	-24	117382	0	£186.12
	1A32FLB32	-	-32	117383	5	£170.88

(All Prices Exclude VAT)
